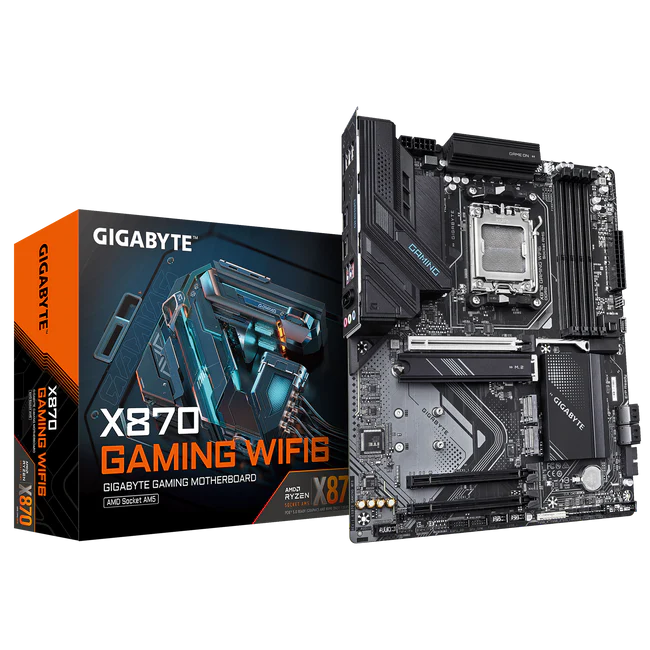

Gigabyte X870 GAMING WIFI6

• Support for DDR5 8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules

• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

• Dual channel memory architecture

• Support for non-ECC Un-buffered DIMM 1Rx8/1Rx16 memory modules

• Support for AMD Extended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

• Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:

2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
*Support for DisplayPort 1.4 version and HDR.

• Integrated Graphics Processor with AMD Radeon™ Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
*Support for HDMI 2.1 version, HDCP 2.3, and HDR.
**Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Realtek® Wi-Fi 6 RTL8851BE (PCB rev. 1.0)
• WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 80MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

• AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
• AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
• AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

• 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

1 x M.2 connector (M2A_CPU), integrated in the CPU, supports Socket 3, M key, type 25110/22110/2280/2580 SSDs.

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs.

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs.

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs.

1 x M.2 connector (M2C_SB), integrated in the Chipset, supports Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs.

1 x M.2 connector (M2B_SB), integrated in the Chipset, supports Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs.

The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2B_SB connector operates at up to x2 mode when a PCIe SSD is installed in the M2C_SB connector.

4 x SATA 6Gb/s connectors.

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices.

RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for SATA storage devices.

CPU+ASMedia USB4® controller:

• 2 x USB4® USB Type-C® ports on the back panel

CPU:

• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

• 1 x USB 3.2 Gen 1 port on the back panel

Chipset + 2 USB 2.0 Hubs:

• 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Chipset:

• 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header

• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

• 4 x USB 2.0/1.1 ports available through the internal USB headers

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x 4-pin ATX 12V power connector

• 1 x CPU fan header

• 1 x CPU fan/water cooling pump header

• 4 x system fan headers

• 3 x addressable RGB Gen2 LED strip headers

• 1 x RGB LED strip header

• 4 x SATA 6Gb/s connectors

• 3 x M.2 Socket 3 connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

• 1 x USB 3.2 Gen 1 header

• 4 x USB 2.0/1.1 headers

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

• 1 x reset jumper

• 1 x Clear CMOS jumper

• 1 x Q-Flash Plus button

• 2 x SMA antenna connectors (2T2R)

• 1 x HDMI port (Note)

• 2 x USB4® USB Type-C® ports (DisplayPort (Note))

• 1 x USB 3.2 Gen 2 Type-A port (red)

• 3 x USB 3.2 Gen 1 ports

• 4 x USB 2.0/1.1 ports

• 1 x RJ-45 port

• 3 x audio jacks

• Voltage detection

• Temperature detection

• Fan speed detection

• Water cooling flow rate detection

• Fan fail warning

• Fan speed control

• 1 x 256 Mbit flash

• Use of licensed AMI UEFI BIOS

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
