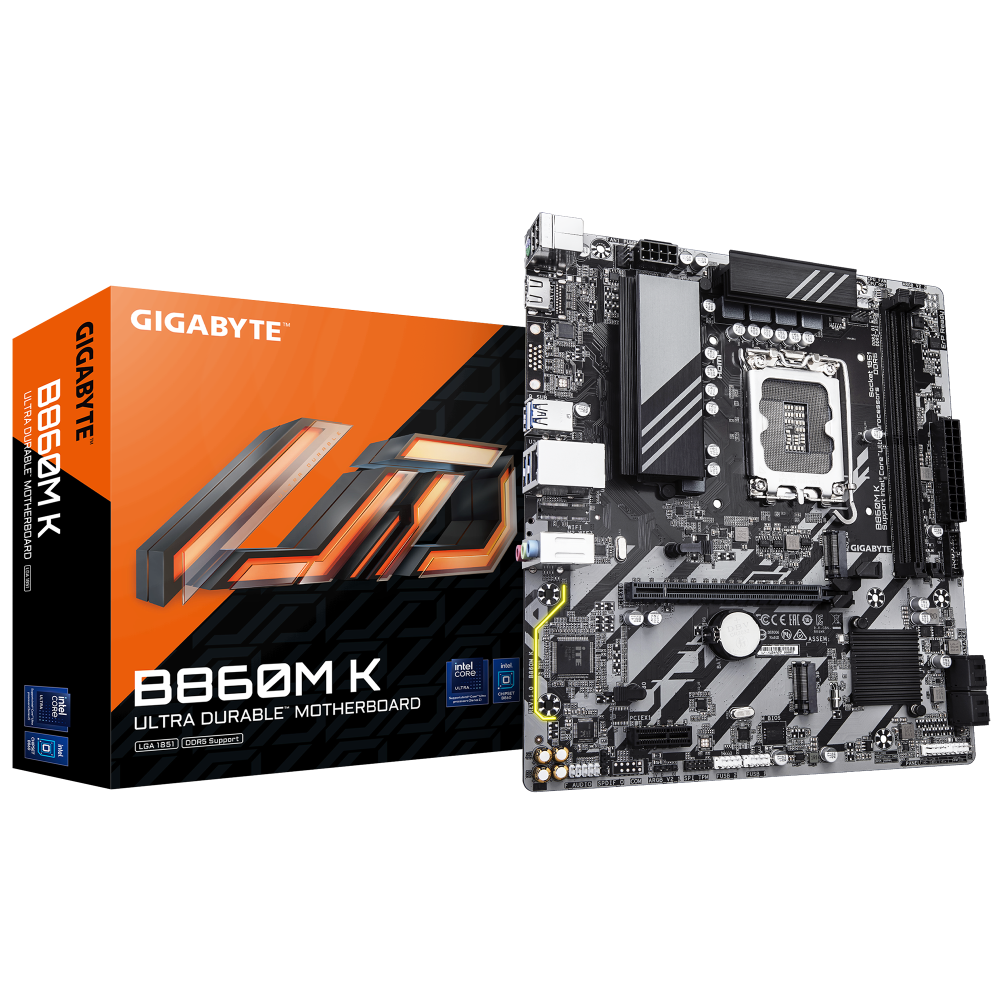

Gigabyte B860M K

CPU
LGA1851 socket; Support for Intel® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU

Chipset
Intel® B860 Express Chipset

Memory
Support for DDR5 8800(OC)/8600(OC)/8400(OC)/8266(OC)/8200(OC)/8000(OC)/7950(OC)/7900(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/5600 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, datarate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics
Integrated Graphics Processor – Intel® HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096 x 2160@60 Hz
*Support for HDMI 2.1 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)

Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
*You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN
Realtek® GBE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots

• CPU:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIE1X)
*The PCIE1X slot can only support a graphics card or an NVMe SSD.

• Chipset:

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIE1)

Storage Interface

Chipset:

• 2 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)

• 4 x SATA 6Gb/s connectors

• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Internal I/O Connectors

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connectors

• 1 x CPU fan header

• 1 x CPU fan/water cooling pump header

• 1 x system fan/water cooling pump header

• 2 x addressable RGB Gen2 LED strip headers

• 2 x M.2 Socket 3 connectors

• 4 x SATA 6Gb/s connectors

• 1 x front panel header

• 1 x front audio header

• 1 x S/PDIF Out header

• 1 x USB 3.2 Gen 1 header

• 2 x USB 2.0/1.1 headers

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

• 1 x serial port header

• 1 x Clear CMOS jumper

Back Panel Connectors

• 1 x PS/2 keyboard/mouse port

• 1 x HDMI port*

• 4 x USB 3.2 Gen 1 ports

• 2 x USB 2.0/1.1 ports

• 1 x RJ-45 port

• 3 x audio jacks

I/O Controller

• ITE® I/O Controller Chip

H/W Monitoring

• Voltage detection

• Temperature detection

• Fan speed detection

• Water cooling flow rate detection

• Fan fail warning

• Fan speed control

BIOS

• 1 x 256 Mbit flash

• Use of licensed AMI UEFI BIOS

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
