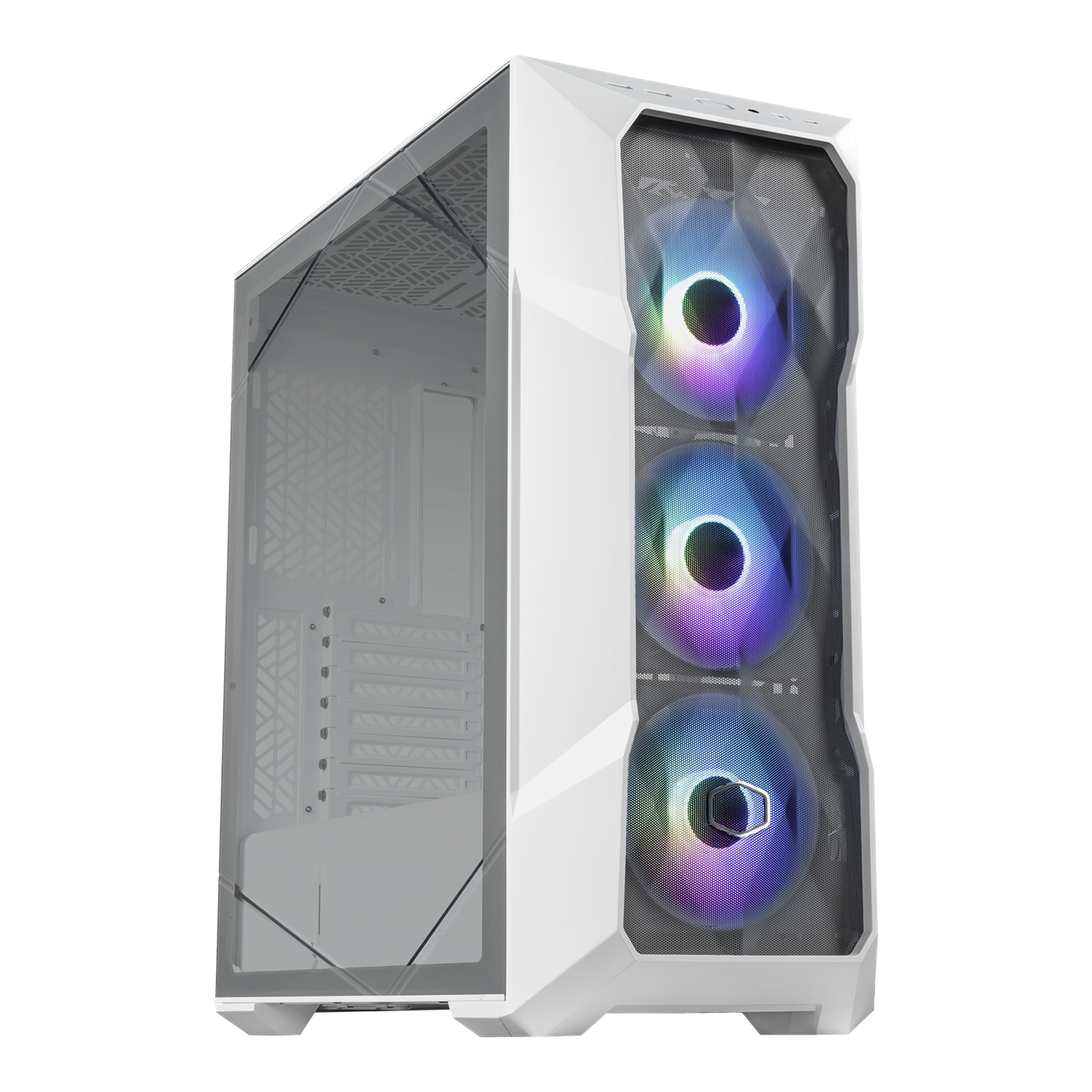

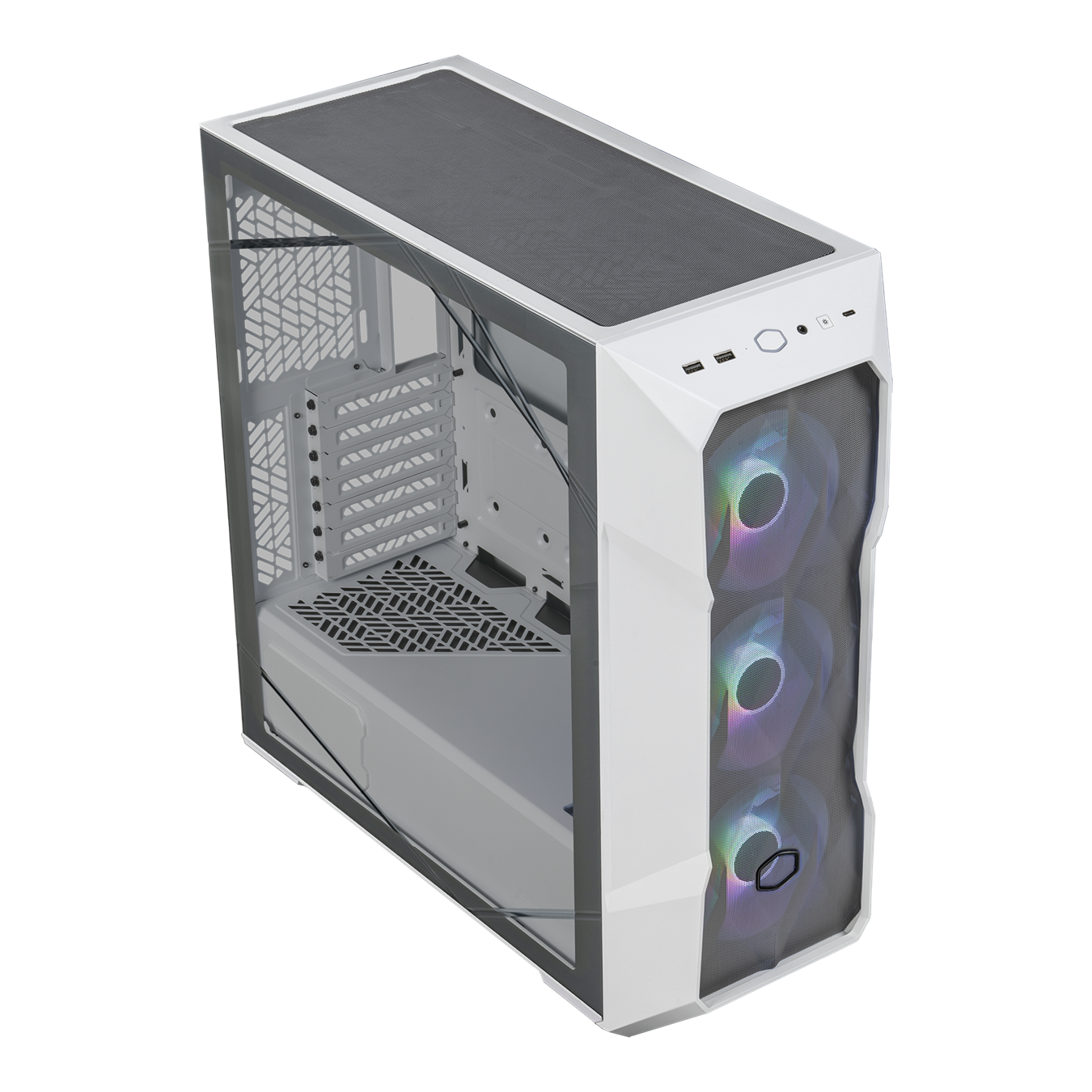

COOLER MASTER MASTERBOX TD500 MESH V2 Mid-Tower Case White

Model Number: TD500V2-WGNN-S00

Series: MasterBox Series

Size: Mid Tower

Exterior Color: White

Materials:

• Exterior: Steel, Mesh, Plastic
• Left Side Panel: Tempered Glass

Dimensions (L x W x H): 499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions)

Motherboard Support: Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature)

Expansion Slots: 7

3.5" Drive Bays: 2

2.5" Drive Bays: 3

I/O Panel:

• USB Ports: 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C
• Audio In / Out: 1x Audio Jack
• Other: 1x ARGB Fan Hub

Pre-installed Fans:

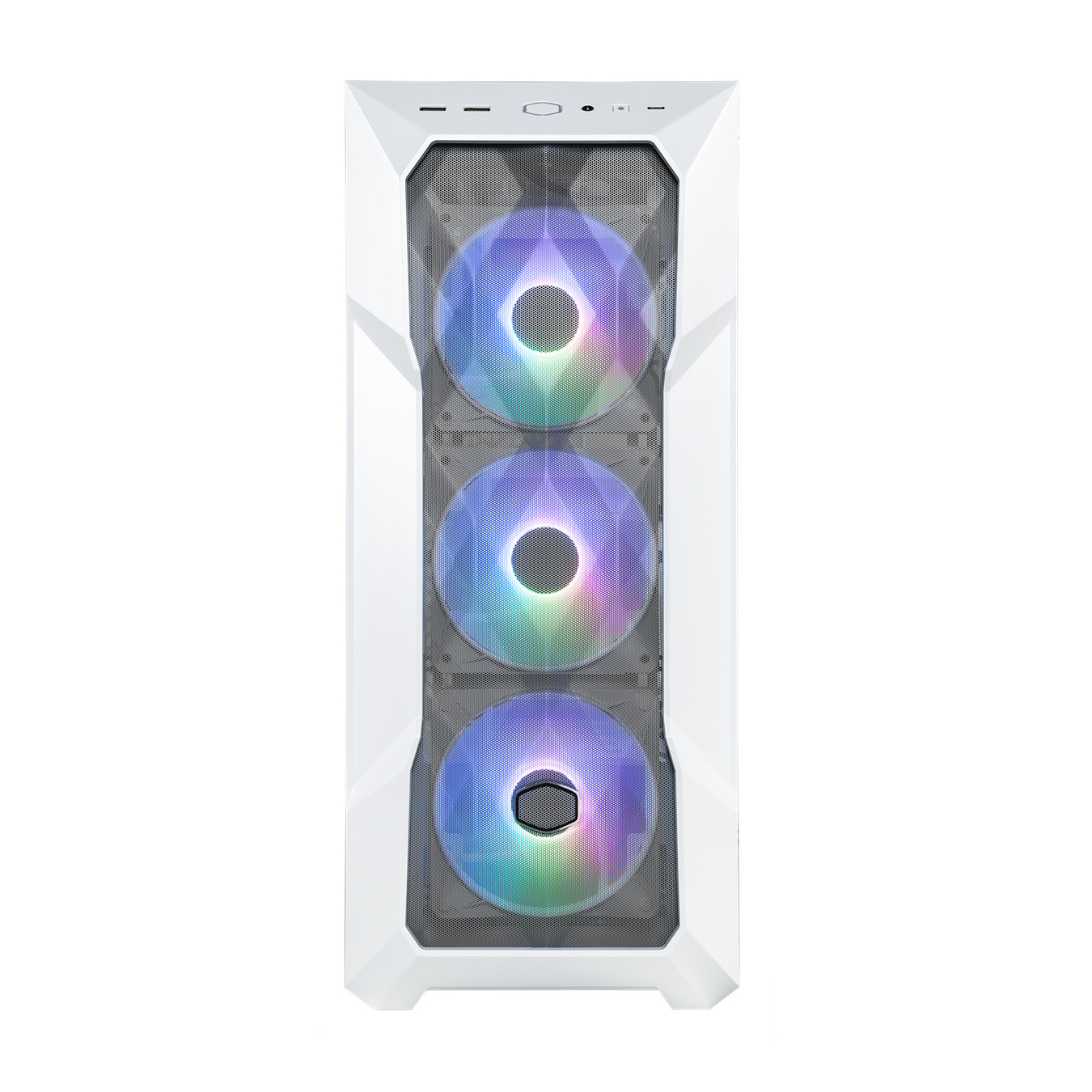

• Front: 3x 120mm CF120 ARGB
• Rear: N/A

Fan Support:

• Top: 3x 120mm, 2x 140mm
• Front: 3x 120mm, 2x 140mm
• Rear: 1x 120mm

Radiator Support:

• Top: 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)
• Front: 120mm, 140mm, 240mm, 280mm, 360mm
• Rear: 120mm

Clearance:

• CPU Cooler: 165mm/6.49"
• PSU: 200mm, (Recommended up to 170mm)
• GFX: 410mm / 16.14"

Cable Routing: Behind Motherboard Tray 19mm / 0.74"

Dust Filters: Front, Top, Bottom

Power Supply Support: Bottom Mount, ATX

Shipping Dimensions (L x W x H): 55cm x 29cm x 58cm
