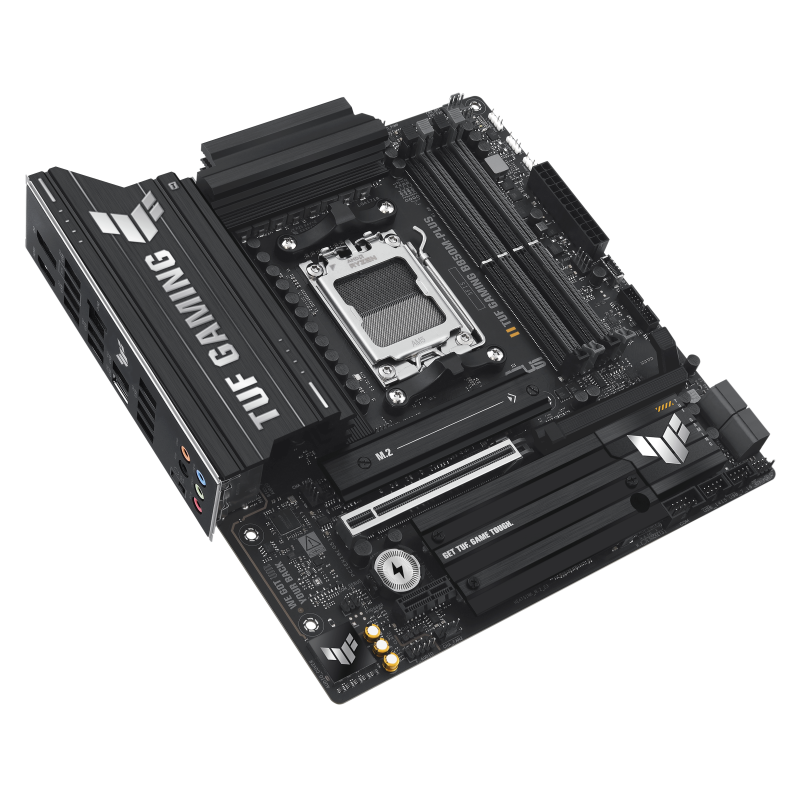

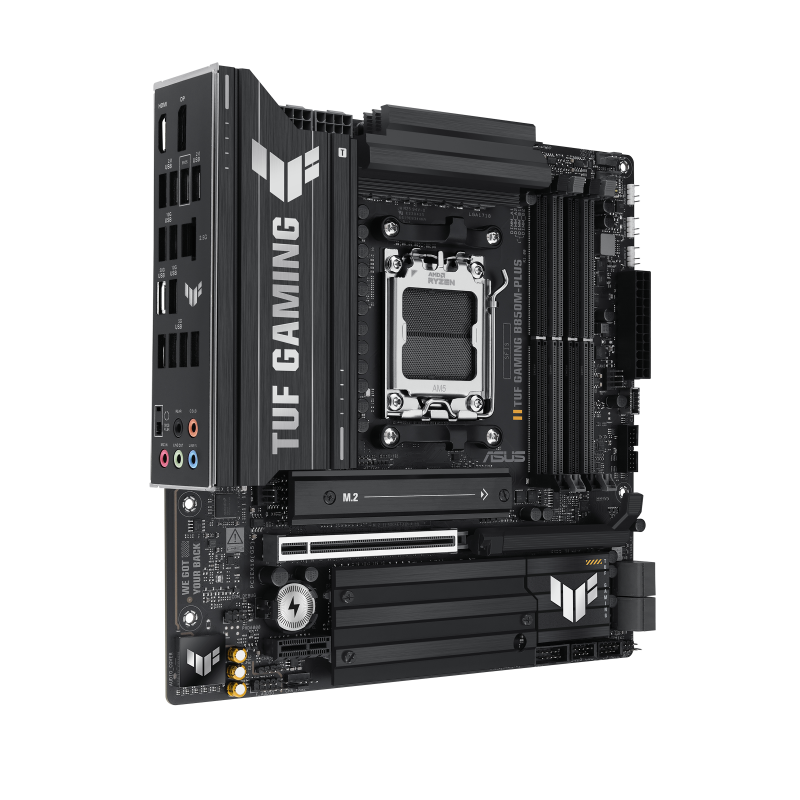

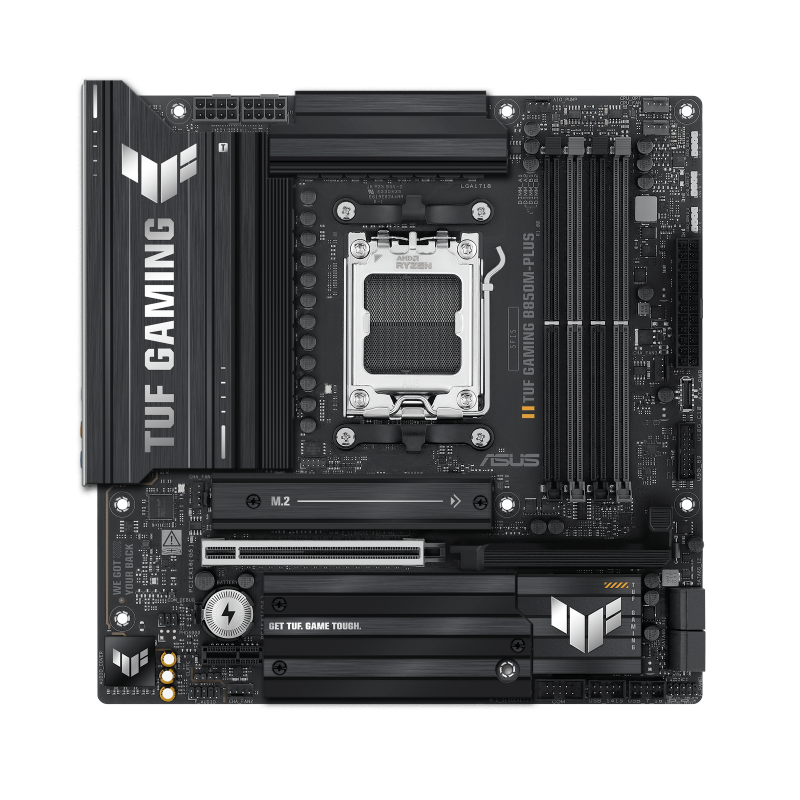

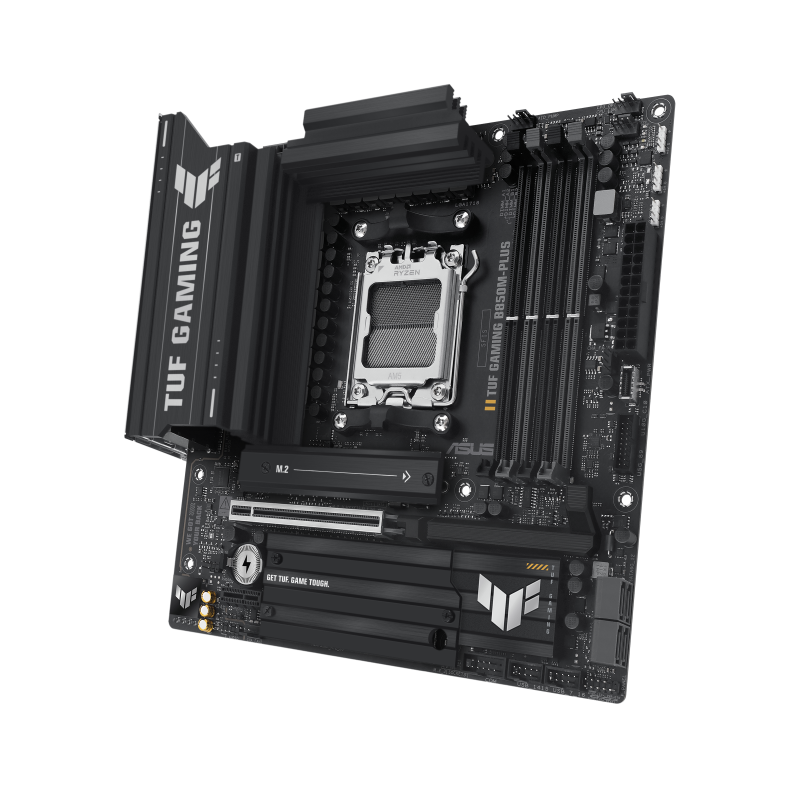

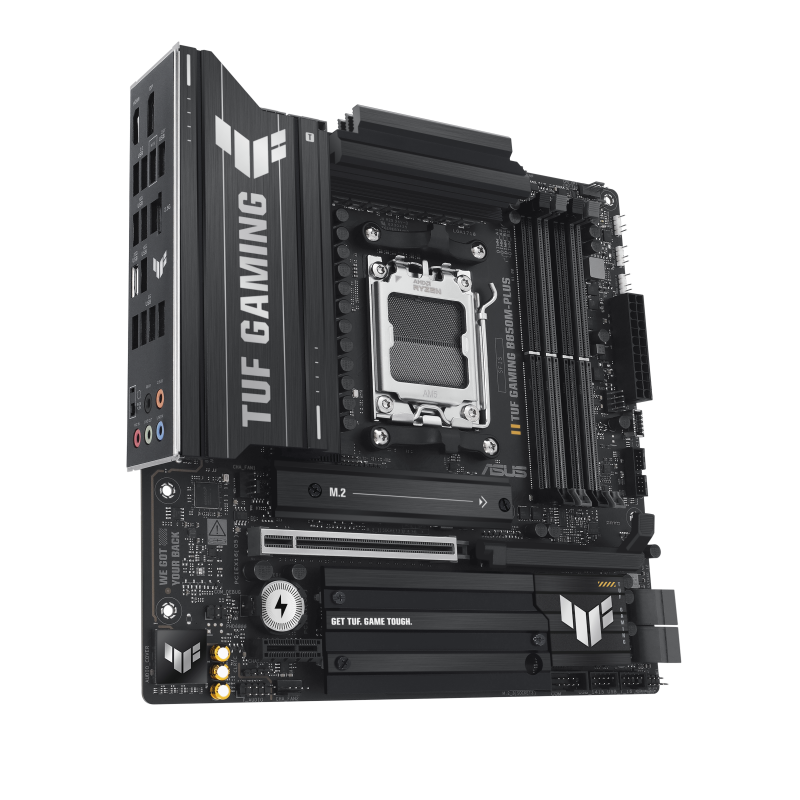

ASUS TUF GAMING B850M-PLUS

Model
TUF GAMING B850M-PLUS

CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset
AMD B850 Chipset

Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
ASUS Enhanced Memory Profile (AEMP)

Graphics
1 x DisplayPort
1 x HDMI™ port

Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B850 Chipset
1 x PCIe 4.0 x1 slot

Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD B850 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports

Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard

USB
Rear USB (Total 12 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit

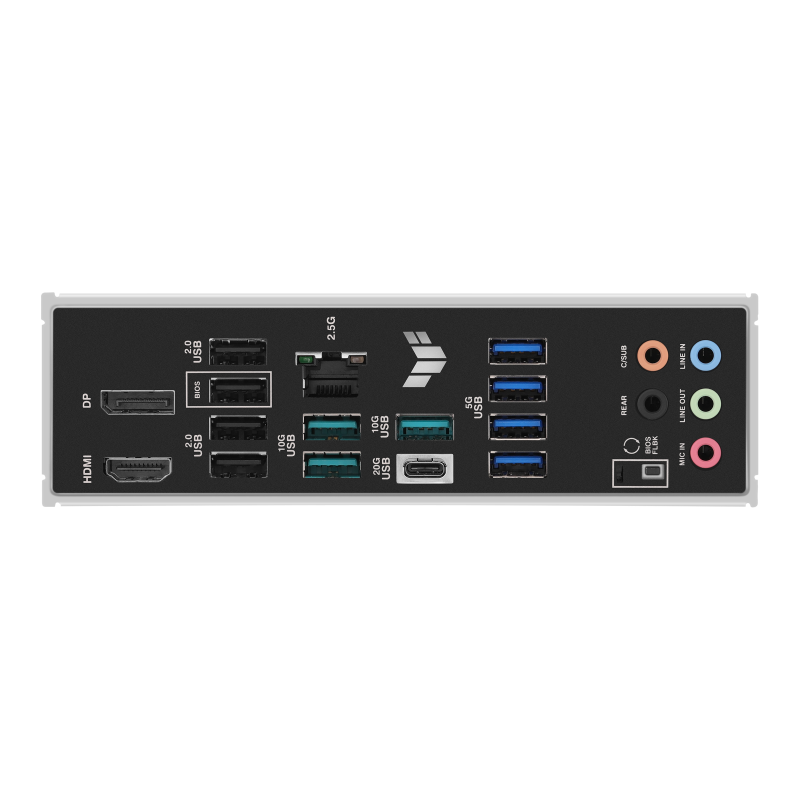

Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O Connectors

• Fan and Cooling Related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  3 x 4-pin Chassis Fan headers
• Power Related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connectors
  Storage Related
  3 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
• USB
  1 x USB 10Gbps connector (supports USB Type-C® )
  1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
  3 x Addressable Gen 2 headers
  1 x Clear CMOS header
  1 x Chassis Intrusion header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x 10-1 pin Front Panel System header

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

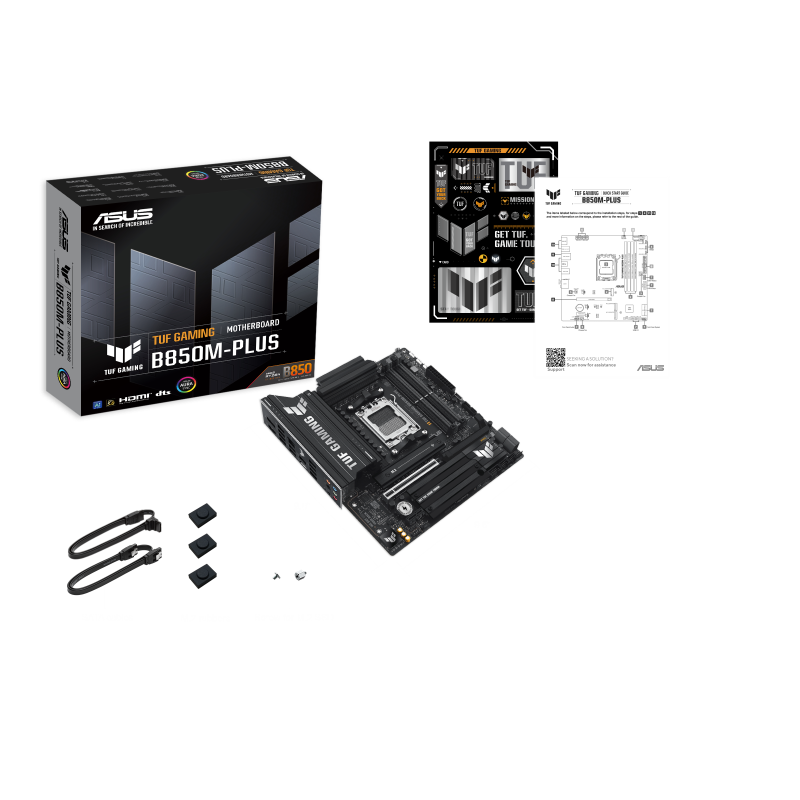

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x TUF GAMING sticker
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide

Operating System
Windows 11, Windows 10 64-bit

Form Factor
micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
