Asus Ryzen 5 5600H PN52-B (W/O Memory & Storage)

Model

• ASUS ExpertCenter PN52(Barebone)

CPU

• AMD Ryzen™ 5 5600H Processor, 35W TDP

Chipset

• Integrated

Graphics

• Integrated - Radeon™ Graphics

Memory

• 2 x DDR4 SO-DIMM, Max. 32GB x 2
• * Memory support may vary based depending on CPU characteristics. Please check the Qualified Vendors List (QVL) for more details.

Storage

• 2 x M.2 2280 PCIe Gen3x4, supports 256GB~1TB NVMe™ SSD
• 1 x 2.5" SATA 6Gb/s, supports 1TB 7200rpm 7mm HDD
• * 2.5" HDD bay only supports 7mm height. ** Please check the Qualified Vendors List (QVL) for more details.

Wireless Data Network

• Wi-Fi 6E (Gig+) 2x2 + Bluetooth® 5.3 Wireless Card
• Wi-Fi 6 (Gig+) 2x2 + Bluetooth® 5.2 Wireless Card
• *WiFi 7 and WiFi 6E 6GHz regulatory may vary among countries.
• *Bluetooth v5.2 and later version functions to be supported in Windows 11 or later.

LAN

• 10/100/1000/2500 Mbps, 2.5G LAN

Audio

• Realtek® ALC3251 HD Audio CODEC
• Front(Side) I/O Ports
• 1 x USB 3.2 Gen1 Type-C
• 2 x USB 3.2 Gen1 Type-A
• 1 x Audio Jack

Back I/O Ports

• 1 x USB 3.2 Gen2 Type-C (with DP1.4 output and PD-in)
• 1 x USB 3.2 Gen2 Type-A
• 2 x USB 3.2 Gen1 Type-A
• 2 x HDMI 2.1 (Up to 4K@60Hz)
• 1 x Configurable Port
• 1 x 2.5G RJ45 LAN
• 1 x Padlock Ring
• 1 x DC-in

Configurable Port Options

• 1 x HDMI 2.1 (Up to 4K@60Hz)
• 1 x DisplayPort 1.4
• 1 x COM
• 1 x VGA
• 1 x 2.5G LAN

Speaker

• No

Power Supply

• 19Vdc, 6.32A, 120W Power Adapter

Dimensions (W x D x H)

• 120 x 130 x 58 mm

Weight

• 0.75 kg(barebone)

Color

• ECO Black
• ECO Black, non-logo

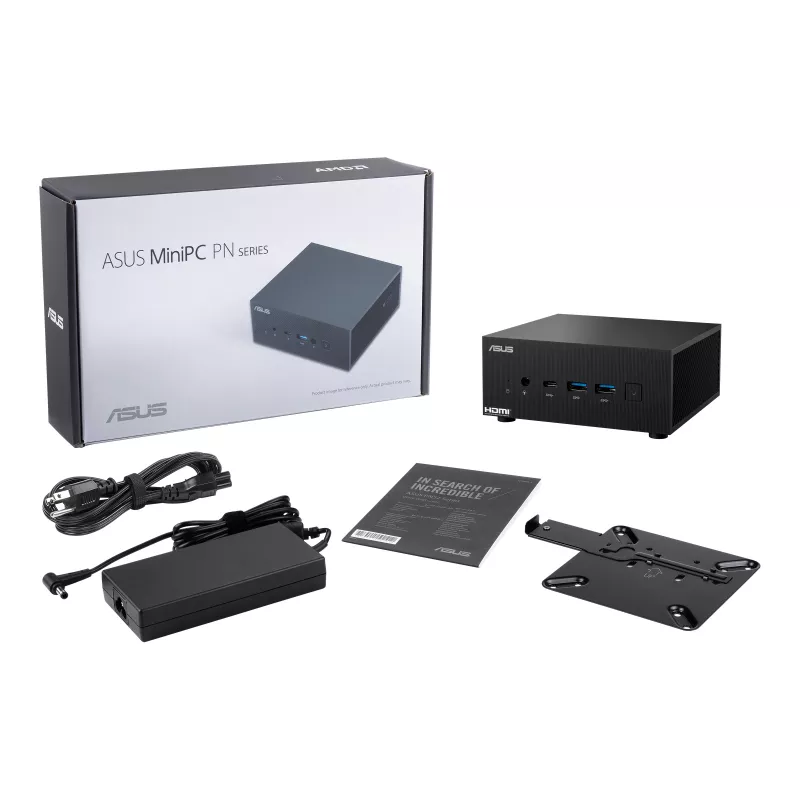

Accessories

• AC Adapter
• Driver DVD (non OS SKU only)
• Power Cord
• Screw Pack
• User Manual
• Warranty Card
• Keyboard & Mouse (optional)
• VESA Mount (optional)

Security

• Trusted Platform Module (TPM)*

*on selected model

• Trusted Platform Module (Firmware TPM)

Certificates

• BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
