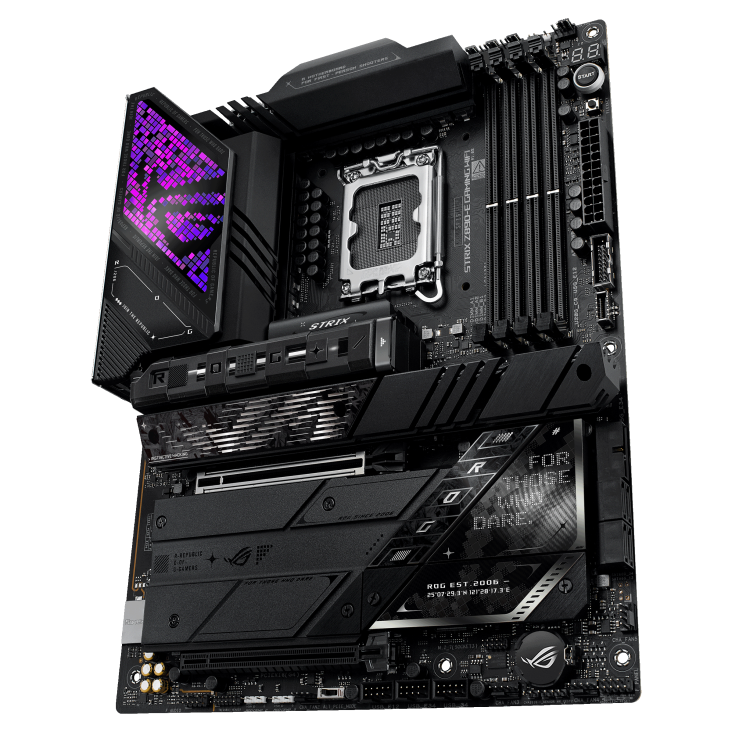

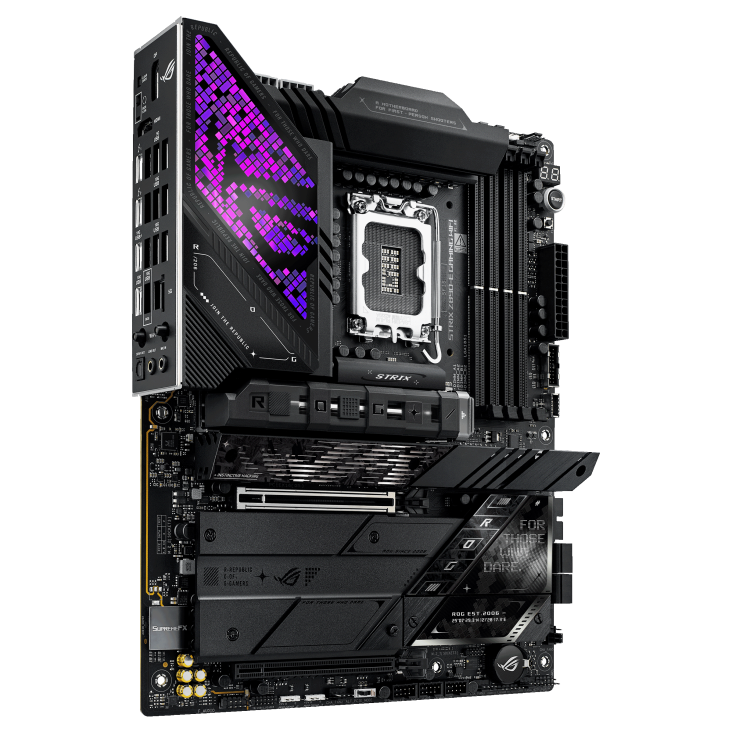

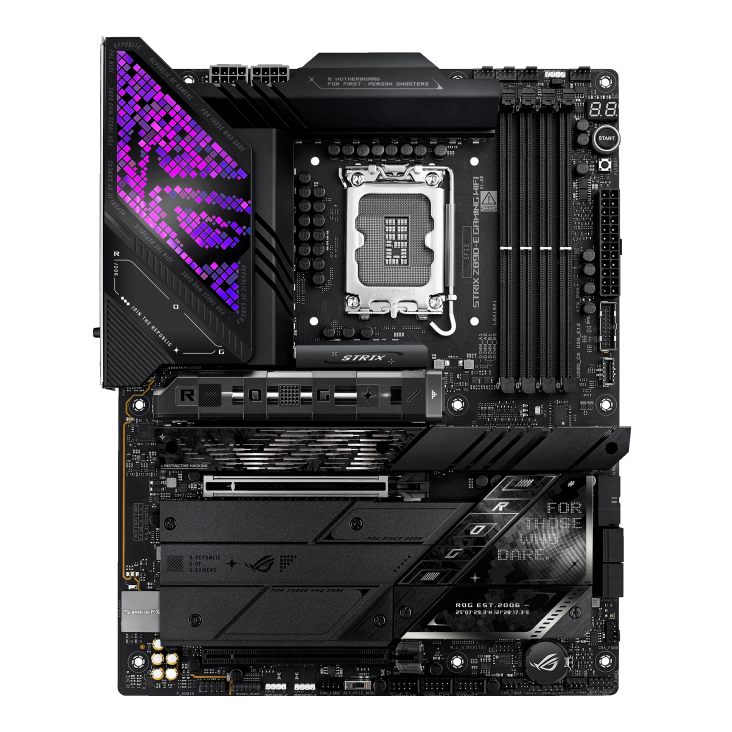

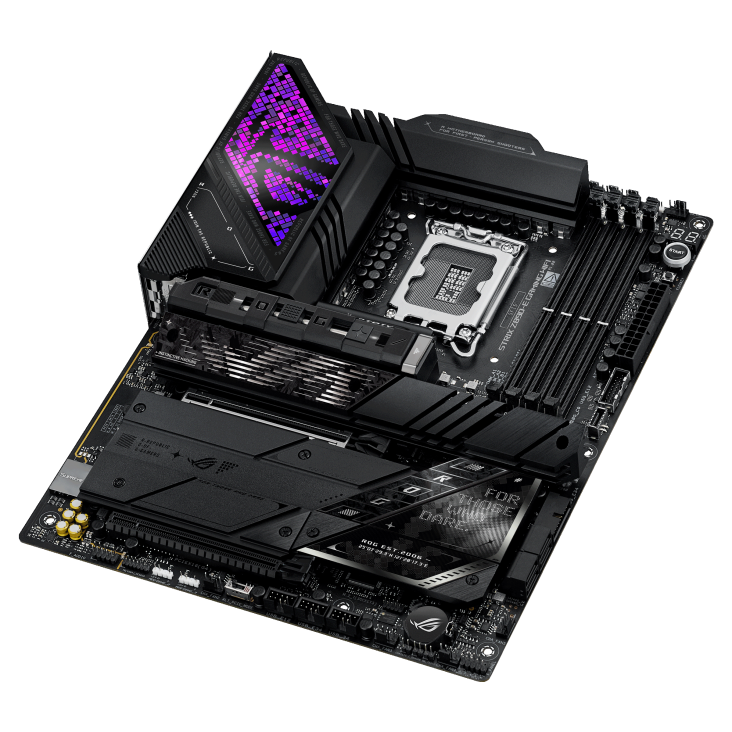

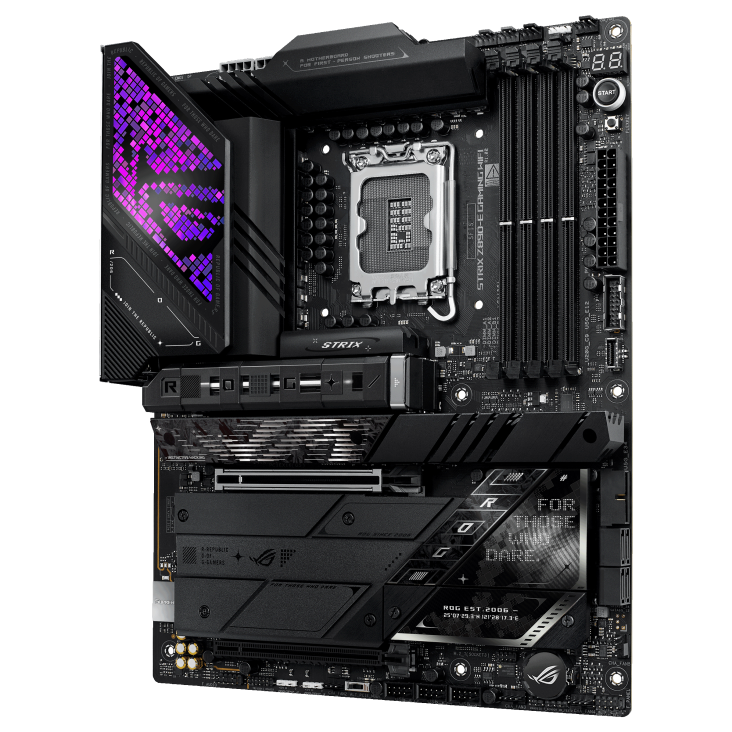

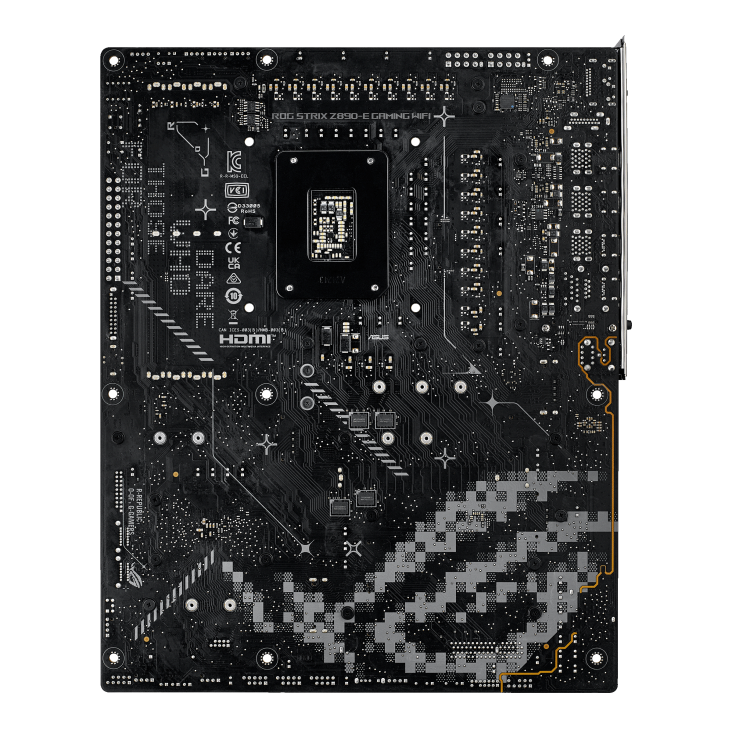

ASUS ROG STRIX Z890-E GAMING WIFI

Model
ROG STRIX Z890-E GAMING WIFI

CPU
Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)

Chipset
Intel® Z890 Chipset

Memory
4 x DIMM slots, max. 256GB, DDR5
 Support up to 8800+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)

Graphics
1 x DisplayPort
1 x HDMI® port
2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs

Expansion Slots
Intel® Core™ Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage
Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® Core™ Ultra Processors(Series 2)

• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

Intel® Z890 Chipset

• M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports

Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 7
 2x2 Wi-Fi 7 (802.11be)
 Supports 2.4/5/6GHz frequency band
 Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
 Bluetooth® v5.4

USB
Rear USB (Total 14 ports)
2 x Thunderbolt™ 4 (2 x USB Type-C®)
9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)**
3 x USB 5Gbps ports (3 x Type-A)
Front USB (Total 11 ports)
1 x USB 20Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports

Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
 - Impedance sense for front and rear headphone outputs
 - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
 - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
 - Supports up to 32-Bit/384 kHz playback
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

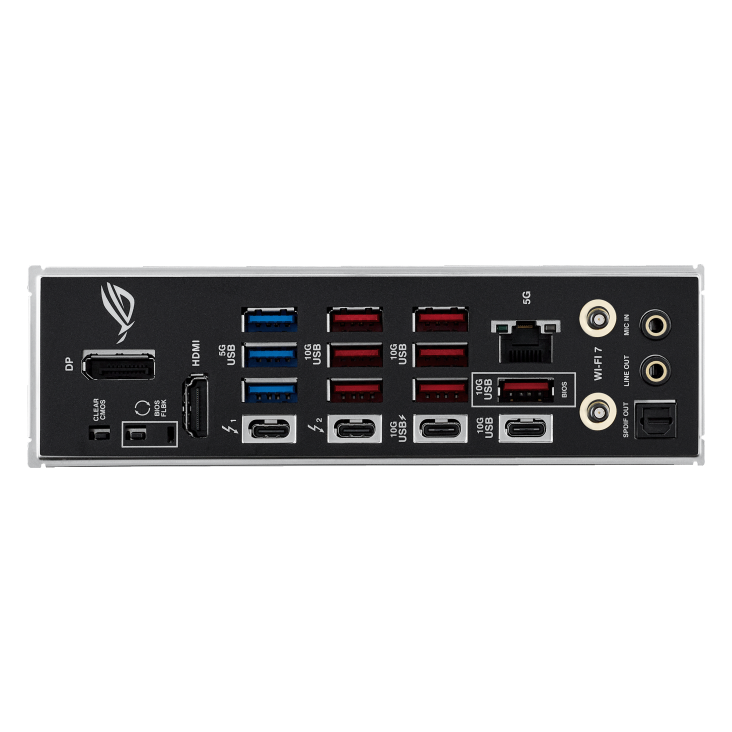

Back Panel I/O Ports
2 x Thunderbolt™ 4 (2 x USB Type-C®)
9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)
3 x USB 5Gbps ports (3 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™  button
1 x Clear CMOS button

Internal I/O Connectors

• Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  5 x 4-pin Chassis Fan headers
• Power related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connectors
• Storage related
  7 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
• USB
  1 x USB 20Gbps connector (supports USB Type-C®)
  2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
  3 x USB 2.0 headers support additional 6 USB 2.0 ports
• Miscellaneous
  3 x Addressable Gen2 headers
  1 x Chassis Intrusion header
  1 x CPU Over Voltage jumper
  1 x FlexKey button
  1 x Front Panel Audio header (F_AUDIO)
  1 x Start button
  1 x 10-1 pin System Panel header
  1 x Thermal Sensor header
  1 x Thunderbolt™ (USB4®) header

BIOS
256 Mb  Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

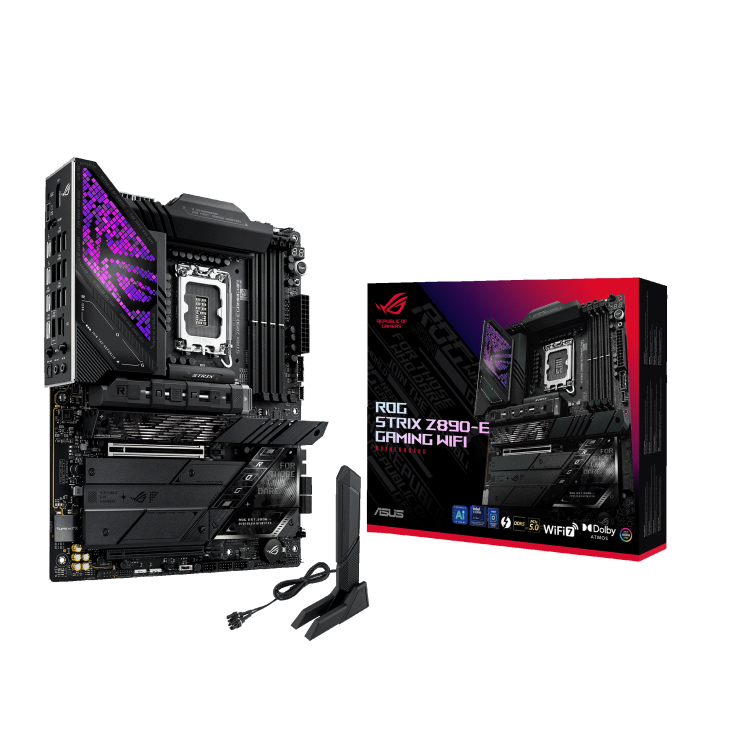

Accessories

• Cables
  2 x SATA 6Gb/s cables
• Additional Cooling Kit
  1 x Thermal pad for M.2 22110
• Miscellaneous
  1 x ASUS Wi-Fi Q-Antenna
  1 x Cable ties pack
  1 x M.2 Q-Latch package
  2 x M.2 Q-Slides
  1 x ROG key chain
  1 x ROG Strix stickers
  7 x M.2 Rubbers
• Documentation
  1 x Quick start guide

Operating System
Windows® 11 (22H2 & later)

Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
