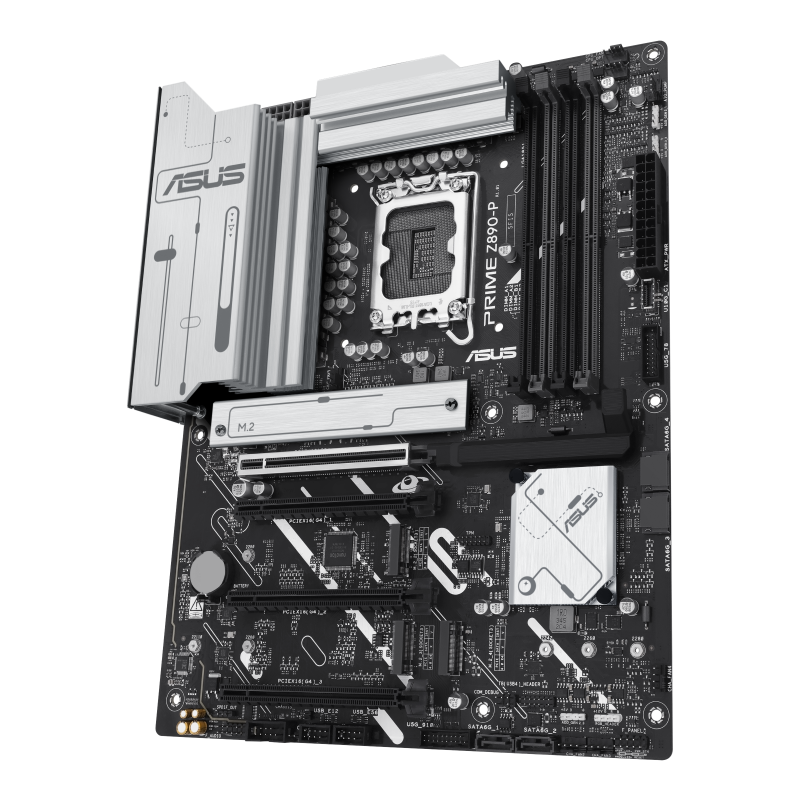

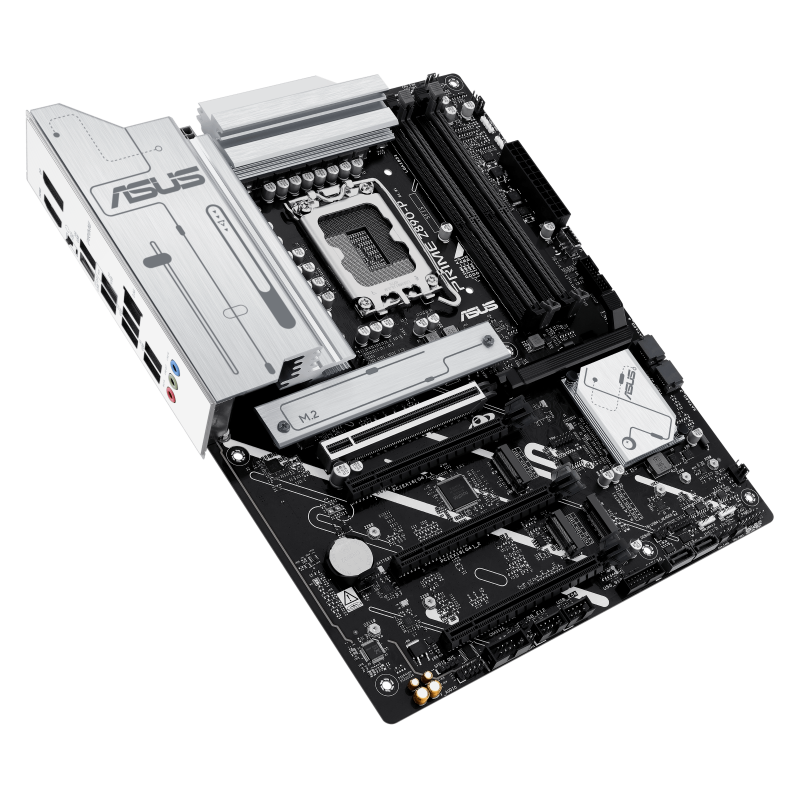

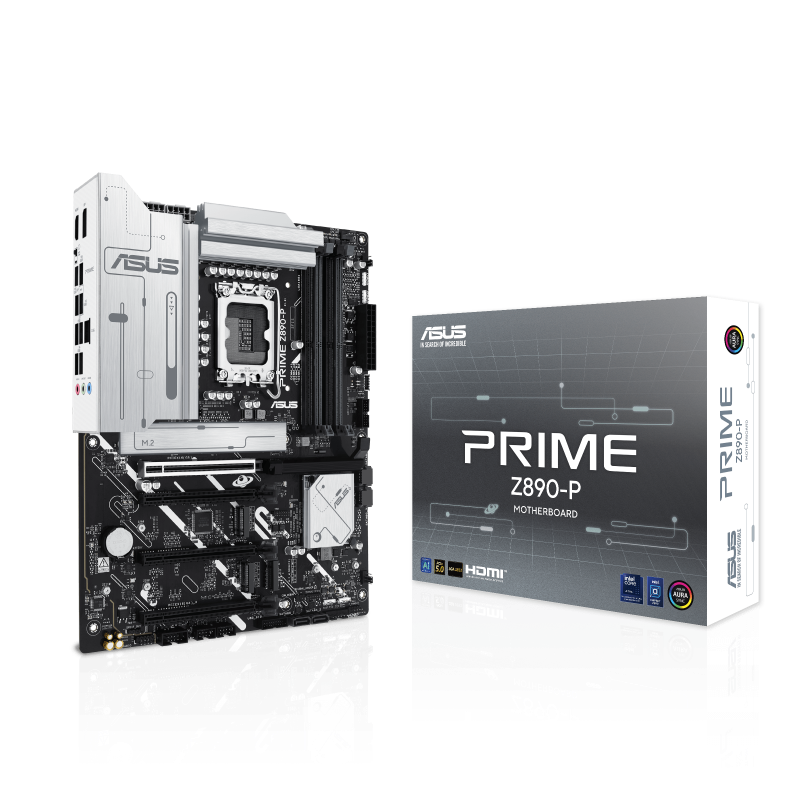

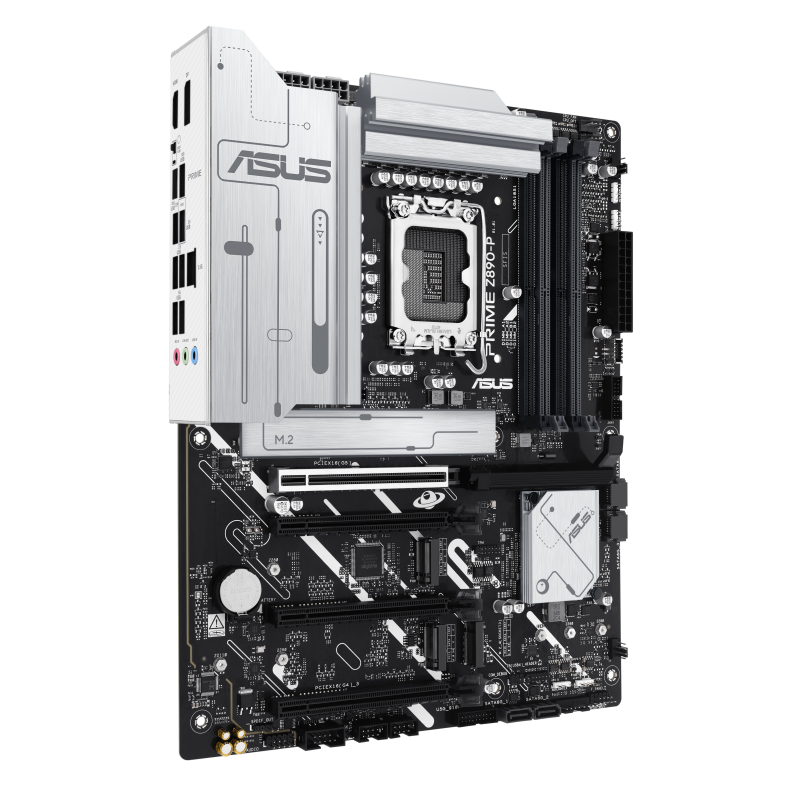

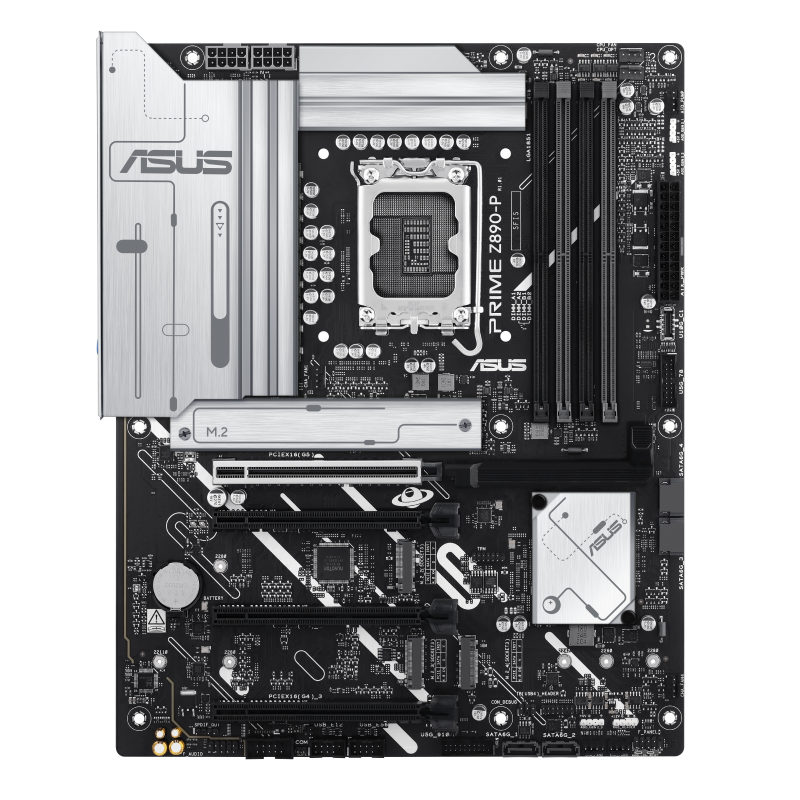

Asus PRIME Z890-P

Model
PRIME Z890-P

CPU
Supports Intel® Core™ Ultra Processors (Series 2), LGA1851

Chipset
Intel® Z890 Chipset

Memory

• 4 x DIMM slots, max. 192GB, DDR5
• Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
• Dual channel memory architecture
• DIMM Fit
• Supports Intel® Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile III(AEMPIII)

Graphics

• 1 x DisplayPort
• 1 x HDMITM port
• 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output

Expansion Slots

• Intel® Core™ Ultra Processors (Series 2)
  1 x PCIe 5.0 x16 slot
• Intel® Z890 Chipset
  2 x PCIe 4.0 x16 slots (support x4 mode)
  1 x PCIe 4.0 x16 slot (supports x1 mode)

Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

• Intel® Core™ Ultra Processors (Series 2)
  M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
  M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• Intel® Z890 Chipset
  M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
  M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  4 x SATA 6Gb/s ports

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

USB

• Rear USB (Total 8 ports)
  1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
  1 x USB 10Gbps port (1 x Type-A)
  2 x USB 5Gbps ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)**
• Front USB (Total 9 ports)
  1 x USB 10Gbps connector (supports USB Type-C®)
  2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
  - Supports: Jack-detection,Multi-streaming, Front Panel Jack-retasking
  - Supports up to 24-Bit/192 kHz playback
• Audio Features
  - Audio Shielding
  - Premium audio capacitors
  - Dedicated audio PCB layers

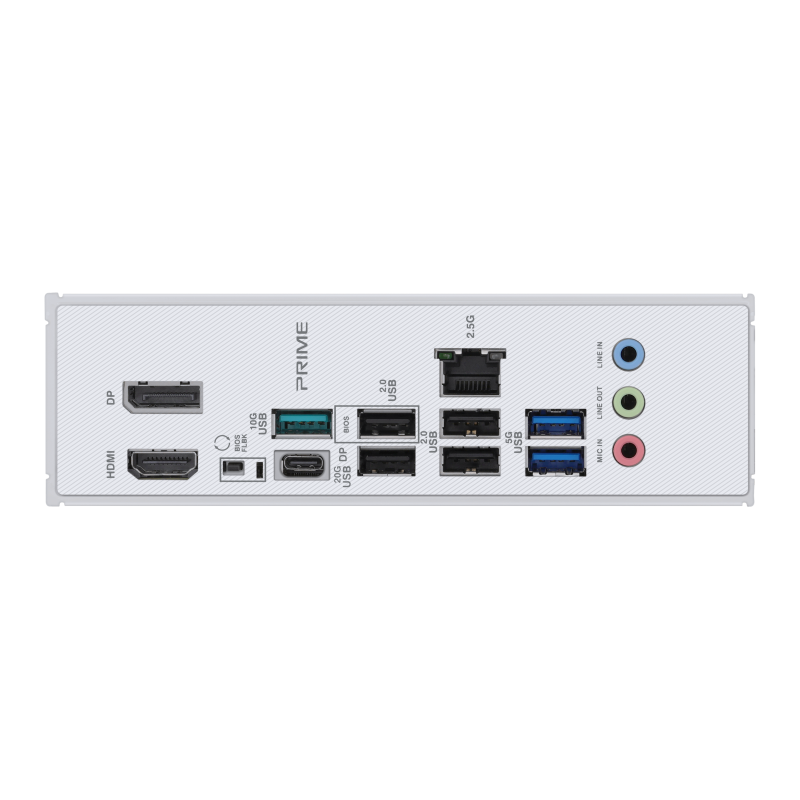

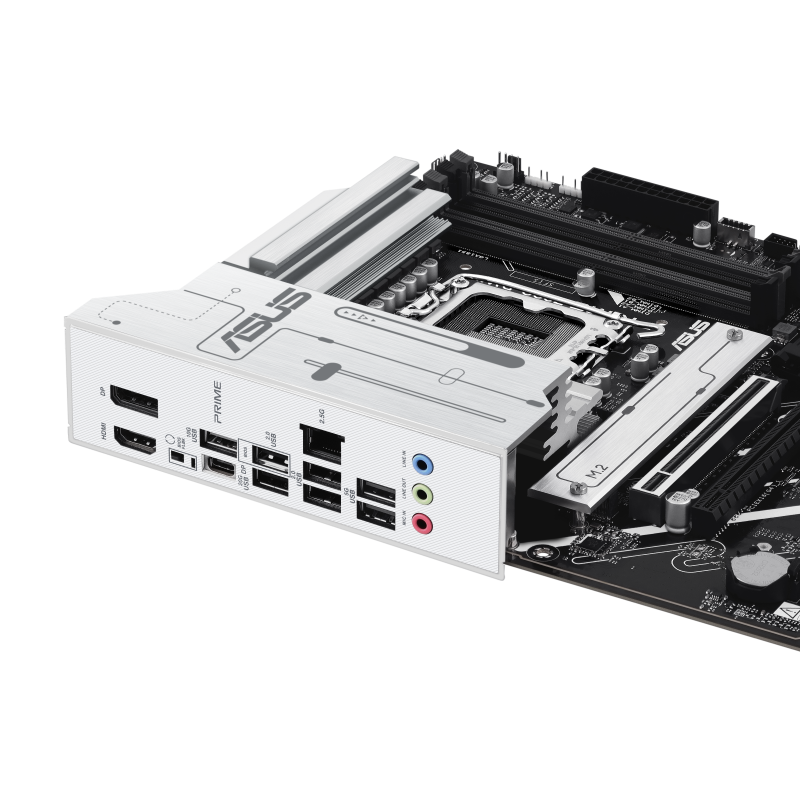

Back Panel I/O Ports

• 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
• 1 x USB 10Gbps port (1 x Type-A)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMITM port
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button

Internal I/O Connectors

• Fan and Cooling related
  1 x 4-pin CPU Fan header
  1 x 4-pin CPU OPT Fan header
  1 x 4-pin AIO Pump header
  4 x 4-pin Chassis Fan headers
• Power related
  1 x 24-pin Main Power connector
  2 x 8-pin +12V CPU Power connector
• Storage related
  4 x M.2 slots (Key M)
  4 x SATA 6Gb/s ports
• USB
  1 x USB 10Gbps connector (supports USB Type-C®)
  2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
  3 x Addressable Gen2 headers
  1 x Aura RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (F_AUDIO)
  1 x S/PDIF Out header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin Front PanelSystem header
  1 x Thunderbolt™ (USB4®) header

BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

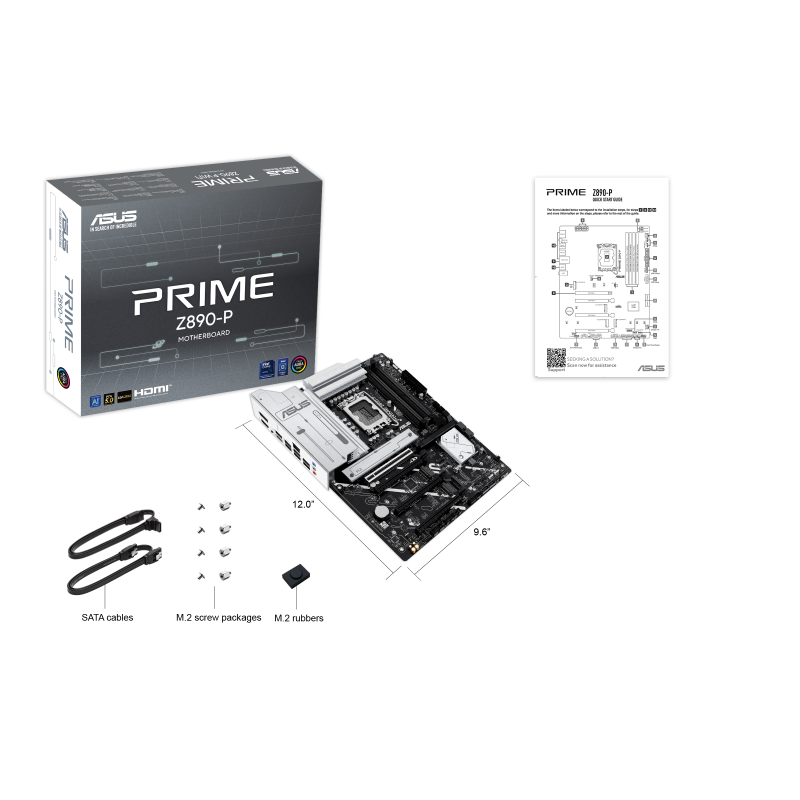

Accessories

• Cables
  2 x SATA 6Gb/s cables
• Miscellaneous
  1 x M.2 rubber package
  2 x Screw packages for M.2 SSD
• Documentation
  1 x Quick start guide

Operating System
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Form Factor
ATX Form Factor
12 inch x 9.6inch ( 30.5 cm x 24.4 cm )
