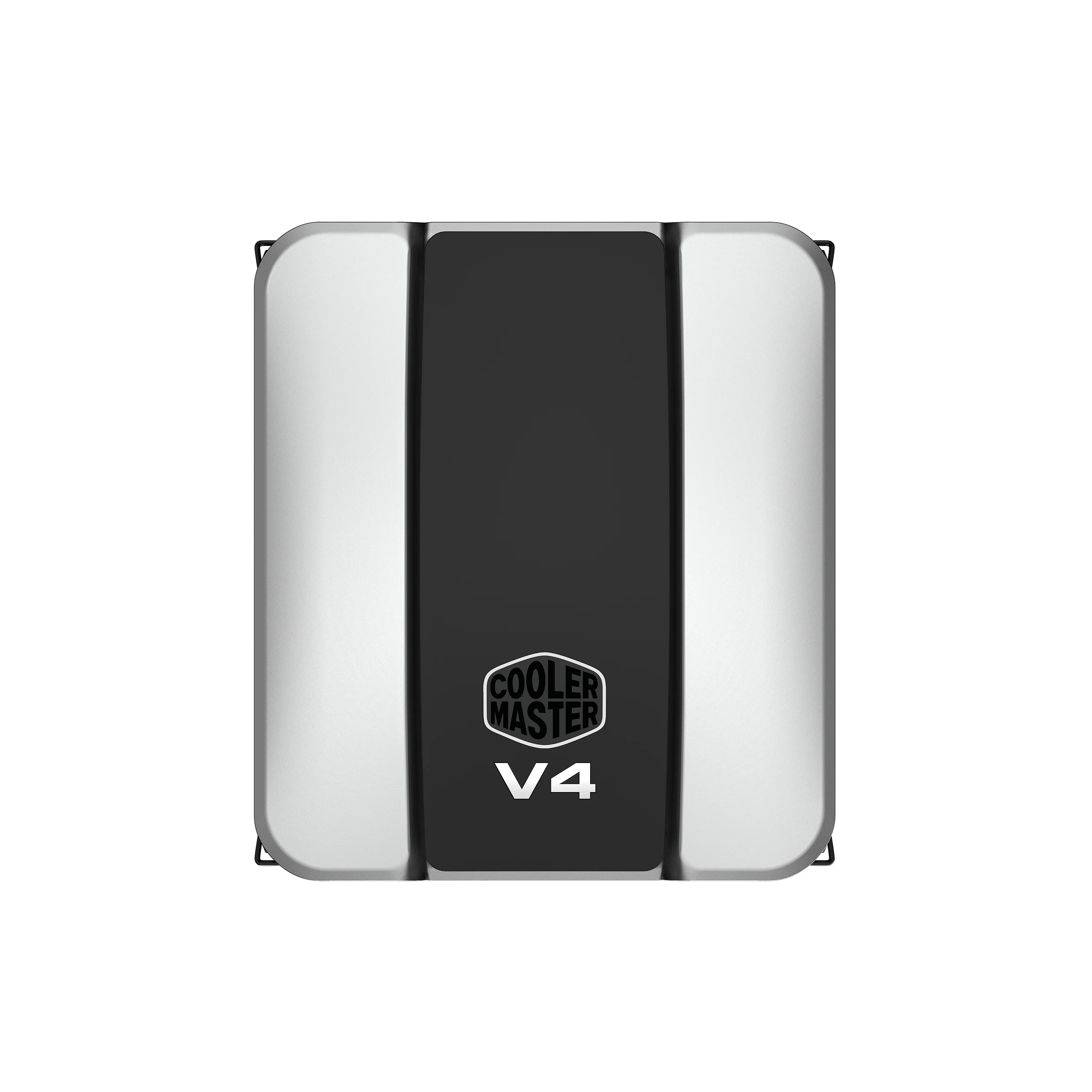

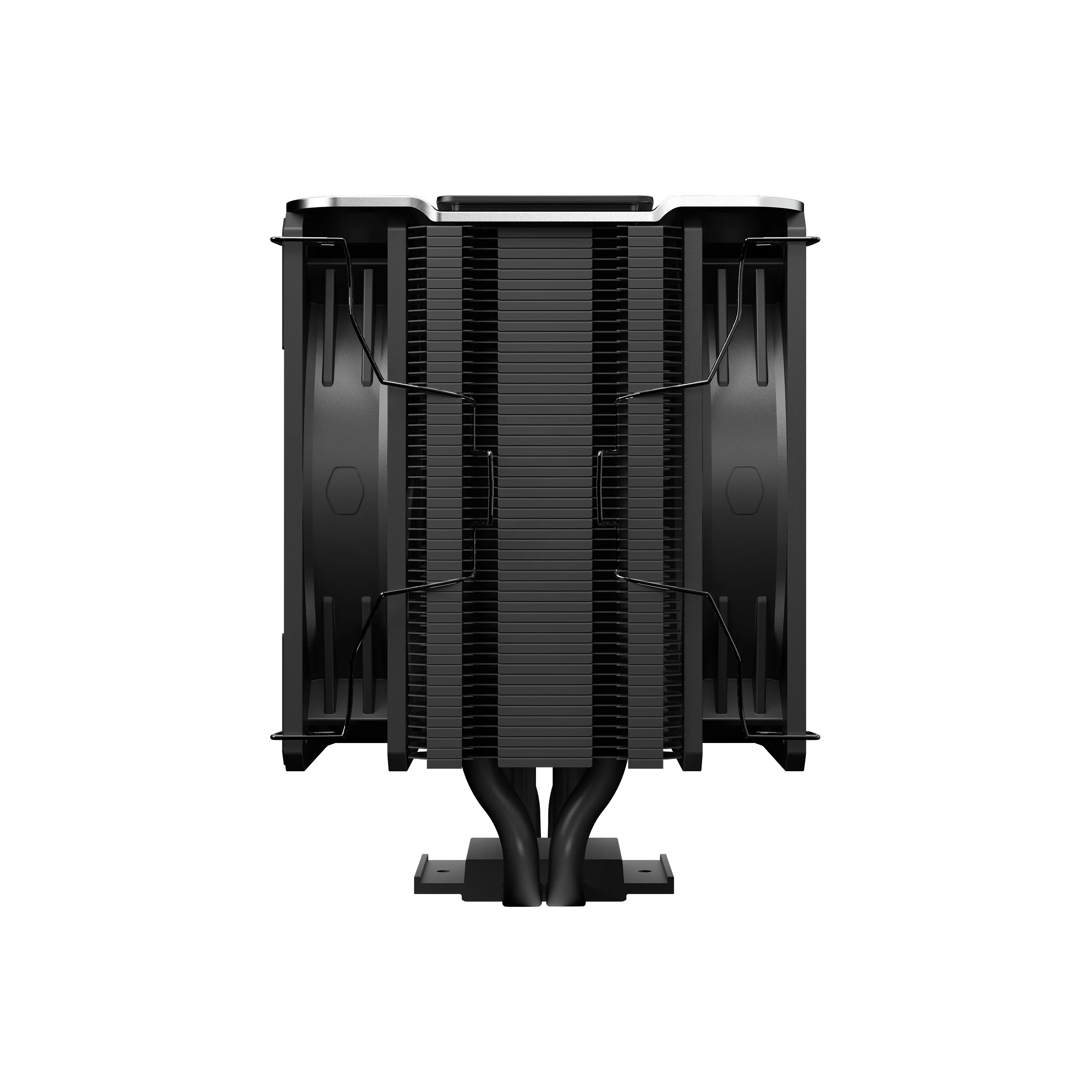

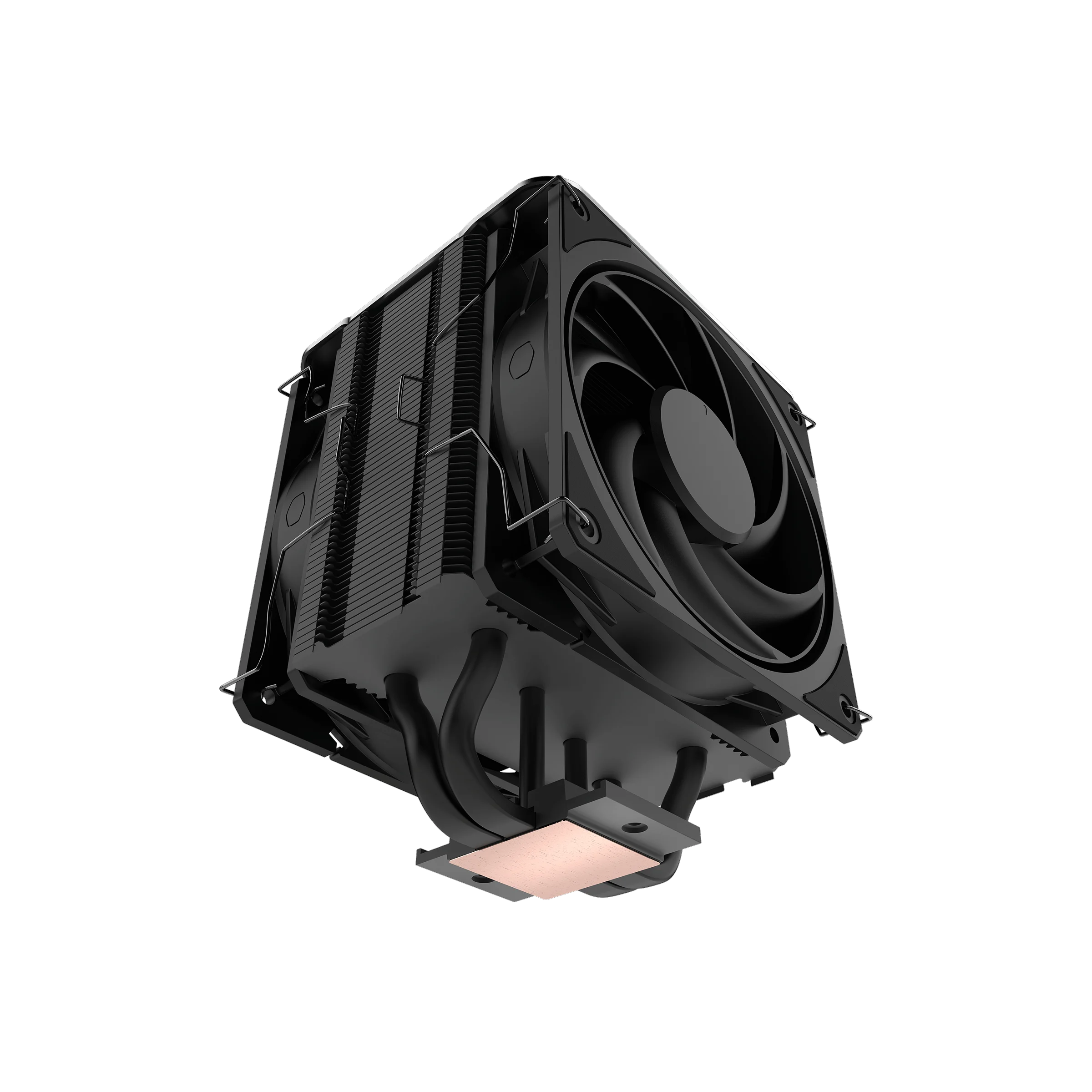

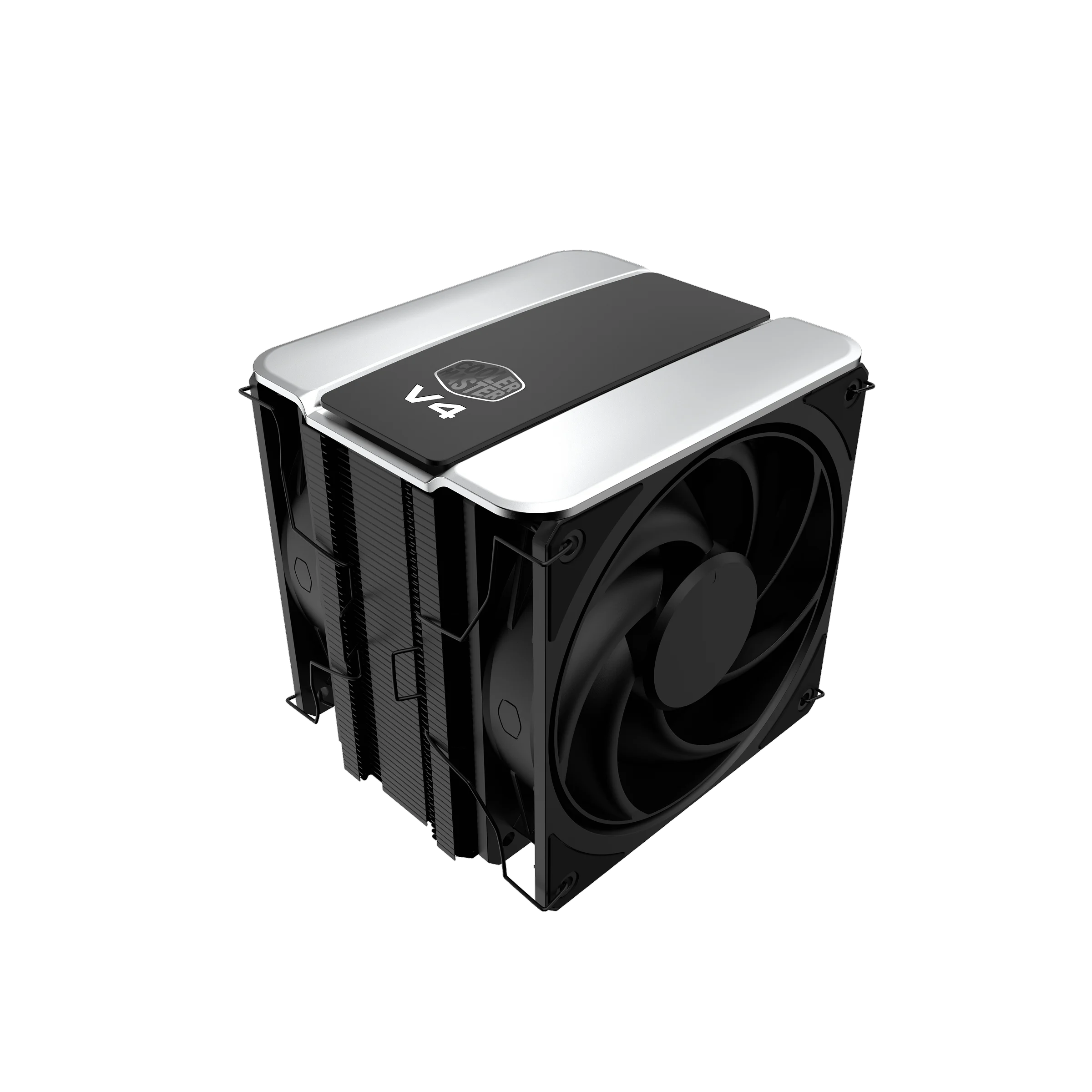

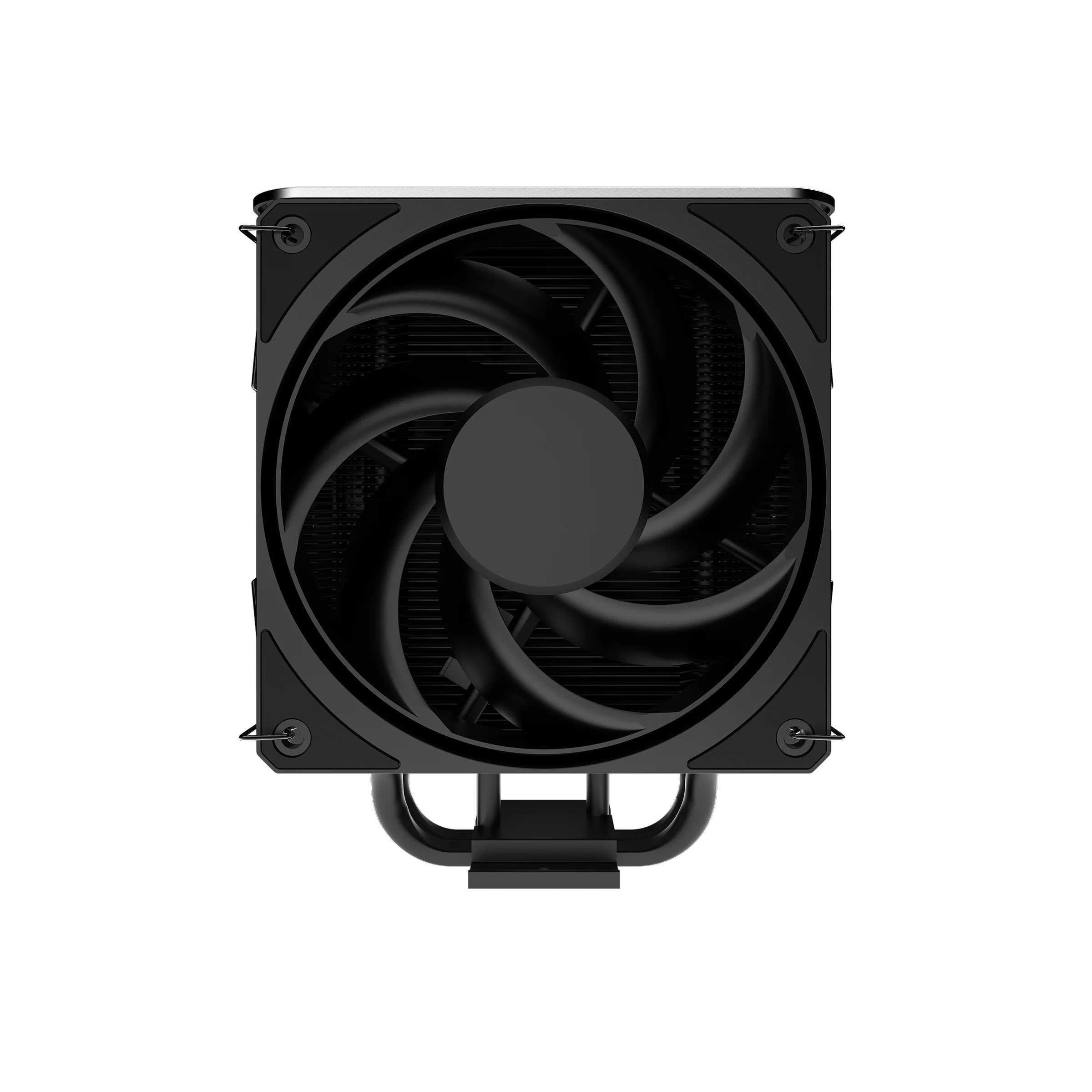

CoolerMaster V4 Alpha 3DHP Black

Product Name
V4 Alpha 3DHP Black

Product Number
MAZ-T2HP-217PK-R1

Exterior Color
Black

CPU Socket
Intel® LGA 1851 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket

CPU Socket
AMD® AM5 / AM4 Socket

Dimension
133 x 114 x 161 mm | 5.2 x 4.5 x 6.3 inch

Heat Sink Material
2 x 3DHP / Aluminum Fins

Fan Item
Front / Rear

Fan Dimensions (L x W x H)
120 x 120 x 25mm

Fan LED Profiles
Non-LED

Fan Quantity
Front: 1, Rear: 1

Fan Speed
Front: 0-2050 RPM​ ± 10%, Rear: 0-1850 RPM​ ± 10%,

Fan Airflow
Front: 107.2 m³/h (63.1 CFM), Rear: 85.8 m³/h (50.5 CFM)

Fan Pressure
Front: 2.69 mmH2O, Rear: 1.77 mmH2O

Fan MTTF
>200,000 Hours

Fan Pressure
Front: 22.6 dBA, Rear: 20 dBA

Fan Bearing Type
Loop Dynamic Bearing

Fan Power Connector
4-Pin (PWM)

Fan Rated Voltage
12 VDC

Fan Rated Current
Front: 0.12 A, Rear: 0.08 A

Fan Safety Current
0.35A

Fan Power Consumption
Front: 1.44 W, Rear: 0.96 W

Series
V

Fan Size
120

Heatpipes
2

Cooler Type
Air Cooler
