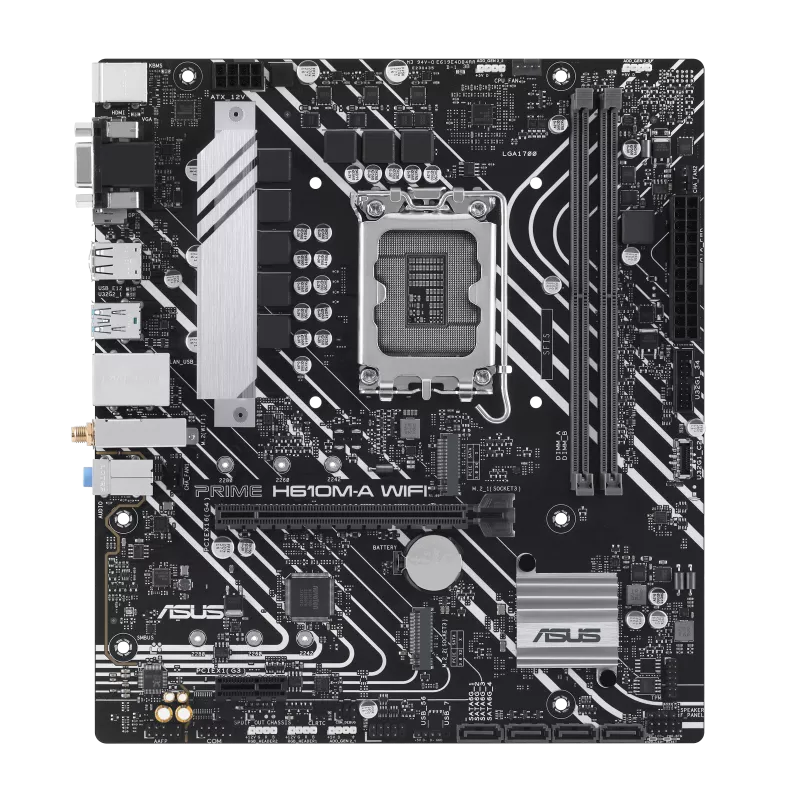

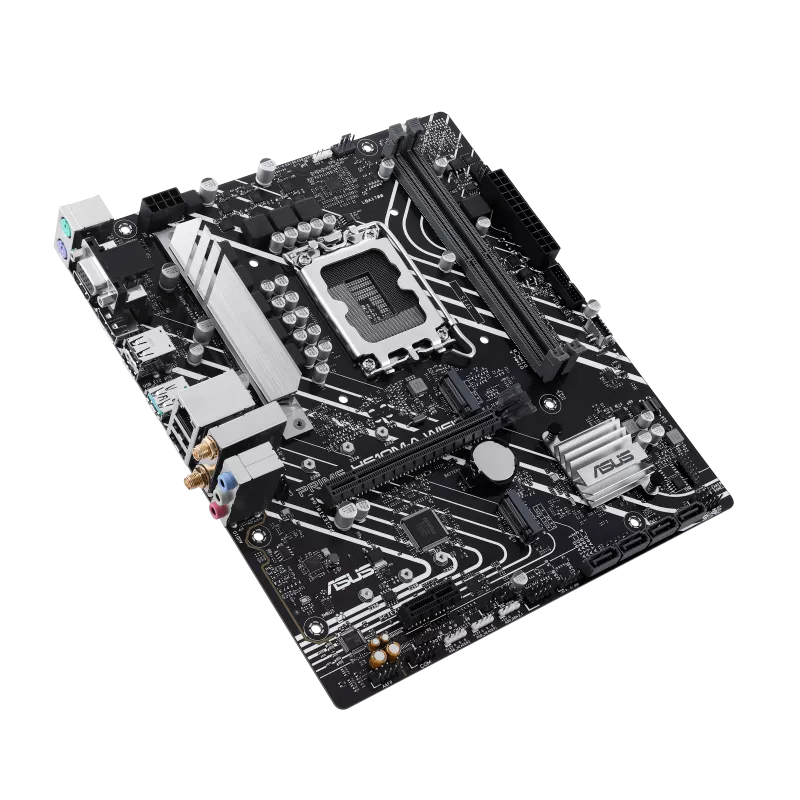

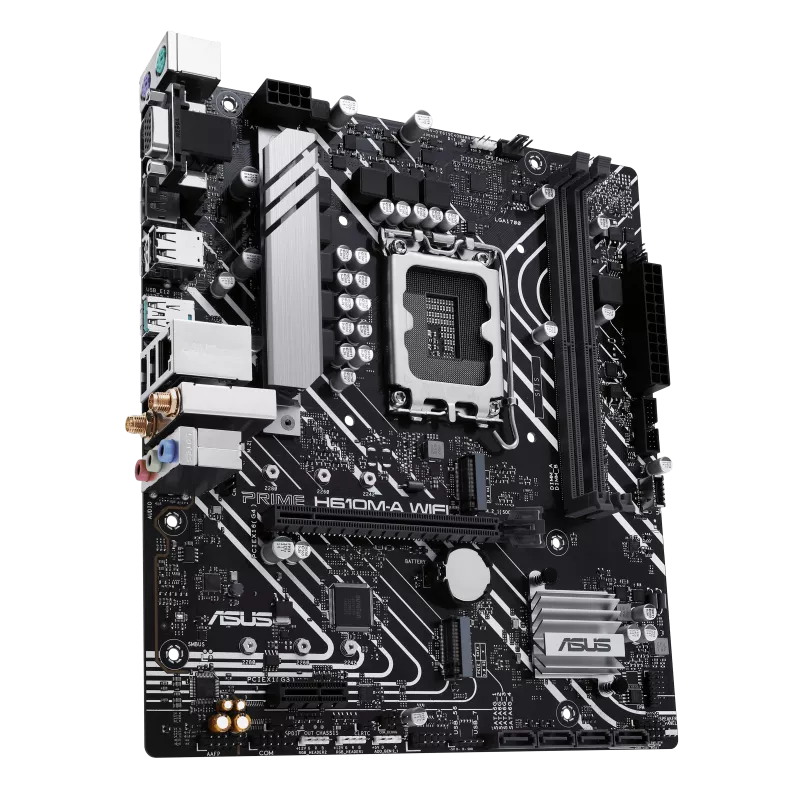

Asus PRIME H610M-A WIFI

Model

• PRIME H610M-A WIFI

CPU

• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*

Chipset

• Intel® H610 Chipset

Memory

• 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)

Graphics

• 1 x DisplayPort
• 1 x VGA port
• 1 x HDMI port

Expansion Slots

Intel® Core™ Processors (14th & 13th & 12th Gen)

• 1 x PCIe 4.0 x16 slot

Intel® H610 Chipset

• 1 x PCIe 3.0 x1 slot

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® H610 Chipset

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
• 4 x SATA 6Gb/s ports

Ethernet

• 1 x Intel® 1Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 5
• Wi-Fi 5 (802.11 a/b/g/n/ac)
• Supports 2.4/5GHz frequency band
• Bluetooth® v5.0

USB

Rear USB (Total 5 ports)

• 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 6 ports)

• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports 1 USB 2.0 port
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback

Audio Features

• - Audio Shielding
• - Premium audio capacitors
• - Dedicated audio PCB layers

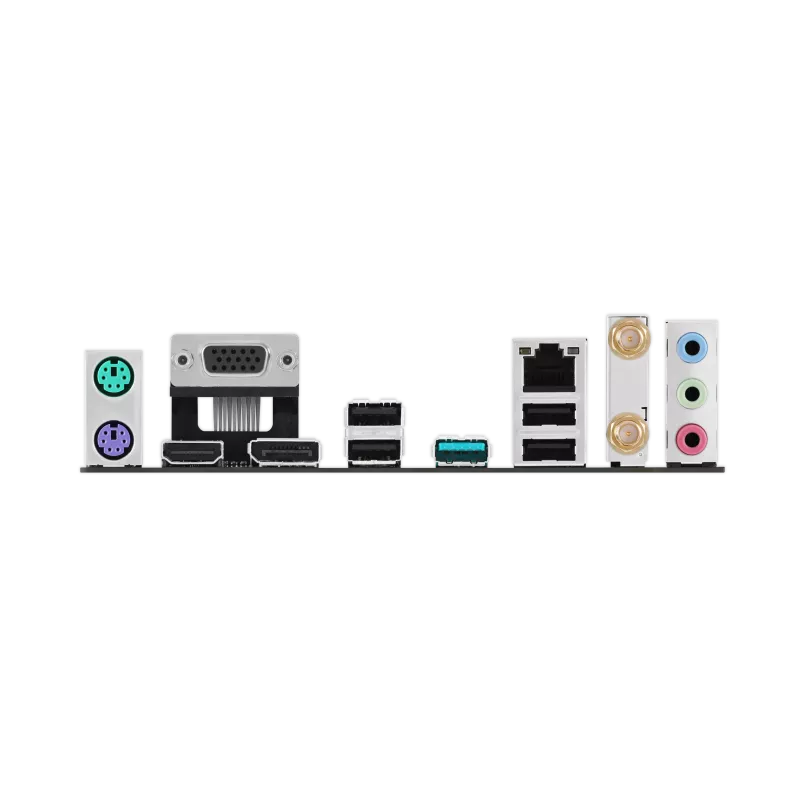

Back Panel I/O Ports

• 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x VGA port
• 1 x HDMITM port
• 1 x Wi-Fi Module
• 1 x Intel® 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard (purple) port
• 1 x PS/2 Mouse (green) port

Internal I/O Connectors

Fan and Cooling related

• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers

Power related

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector

Storage related

• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports
• 1 x USB 2.0 header supports 1 USB 2.0 port
• 1 x USB 2.0 header supports additional 2 USB 2.0 ports

Miscellaneous

• 3 x Addressable Gen 2 headers
• 2 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (AAFP)
• 1 x COM Port header
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

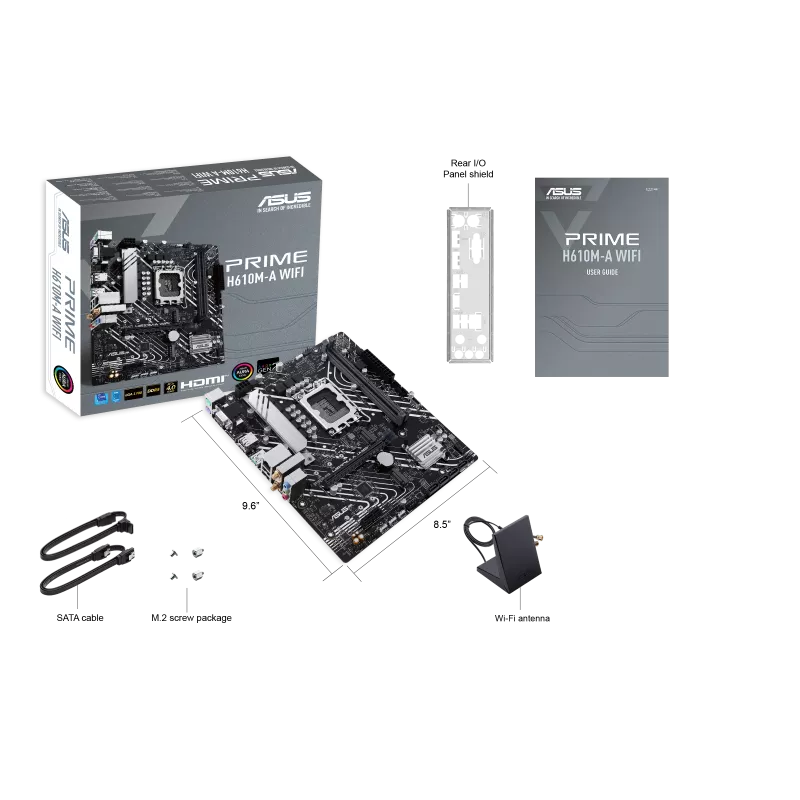

Accessories

Cables

• 2 x SATA 6Gb/s cables

Miscellaneous

• 1 x ASUS Wi-Fi moving antennas

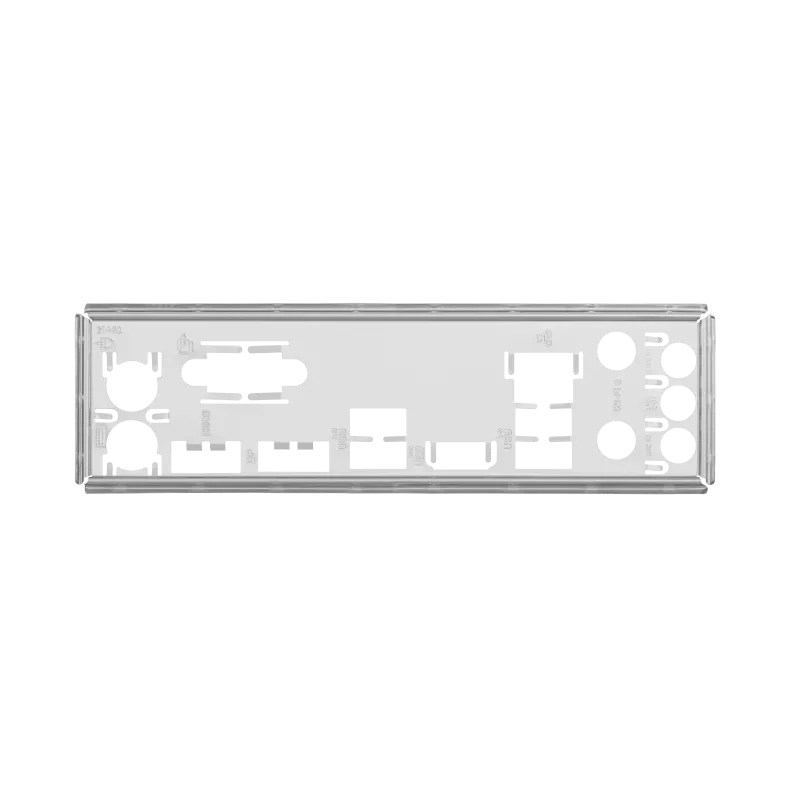

• 1 x I/O Shield
• 1 x Screw package for M.2 SSD

Documentation

• 1 x User guide

Operating System

• Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

• mATX Form Factor
• 9.6 inch x 8.5 inch ( 24.4 cm x 21.6 cm )
